Interconnection: Solidcom C1 & Clearcom 702

Solidcom C1 & Clearcom 702

【AS-220527158】

1. Connection

①【2 Wire】 interface of Solidcom C1

②Standard 3 PIN XLR Cable

③Clearcom 702 【Intercom Channel A/B】 3 PIN XLR interface

Interconnection: Using a standard XLR cable, male connector connect to Solidcom C1 【2 Wire】 interface, female connector connect to one of the Clearcom 702 【Intercom Channel A/B】 interface.

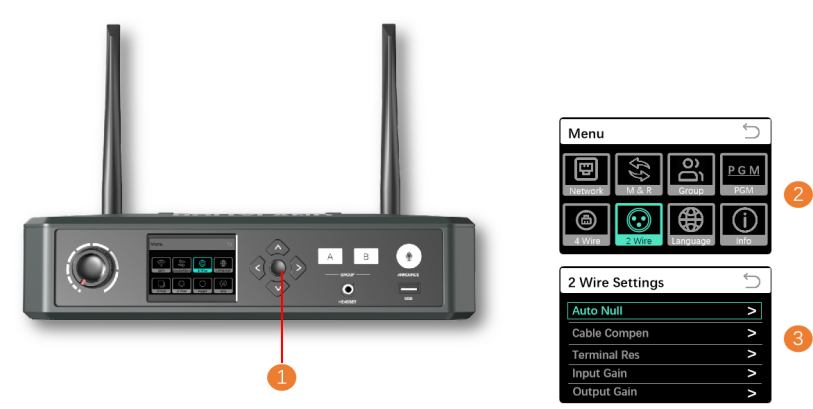

2. Setting:

①Long-press the middle button of Solidcom to enter the menu

②Select 【2 Wire】setting

③Turn off 【Terminal Res】, if you can hear the echo from Clearcom 702, you can select【Auto Null】to calibrate.

FAQ:

Q1: What if the sound from Solidcom C1 to Clearcom 702 is too quiet?

Solution:

Solidcom C1 Menu =》2 Wire setting =》Output Gain: Select Gain to 【6dB】,【12dB】,【18dB】

Q2: What if the sound from Clearcom 702 is too quiet?

Solution:

Solidcom C1 Menu =》2 Wire setting =》Iutput Gain: Select Gain to 【6dB】,【12dB】,【18dB】
